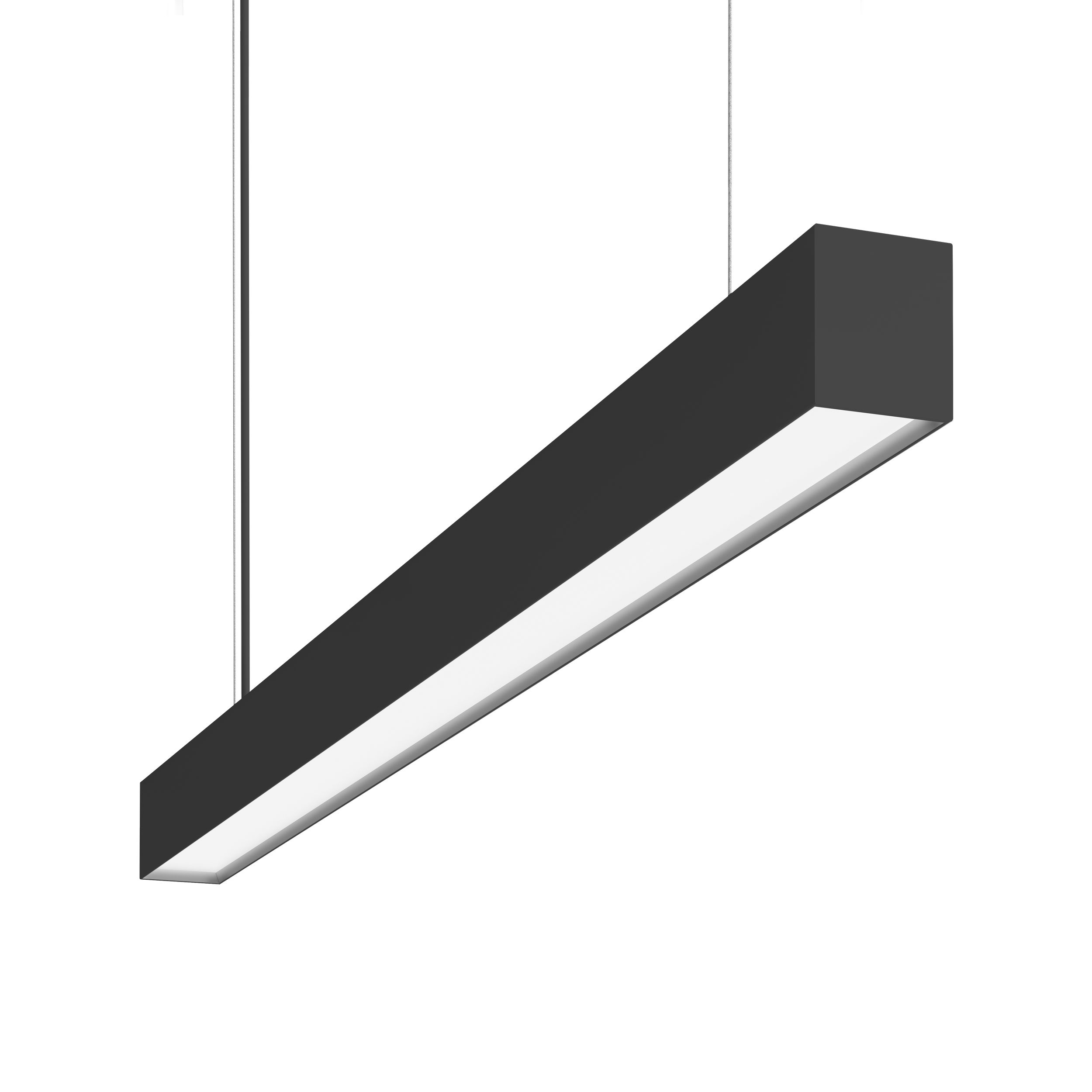

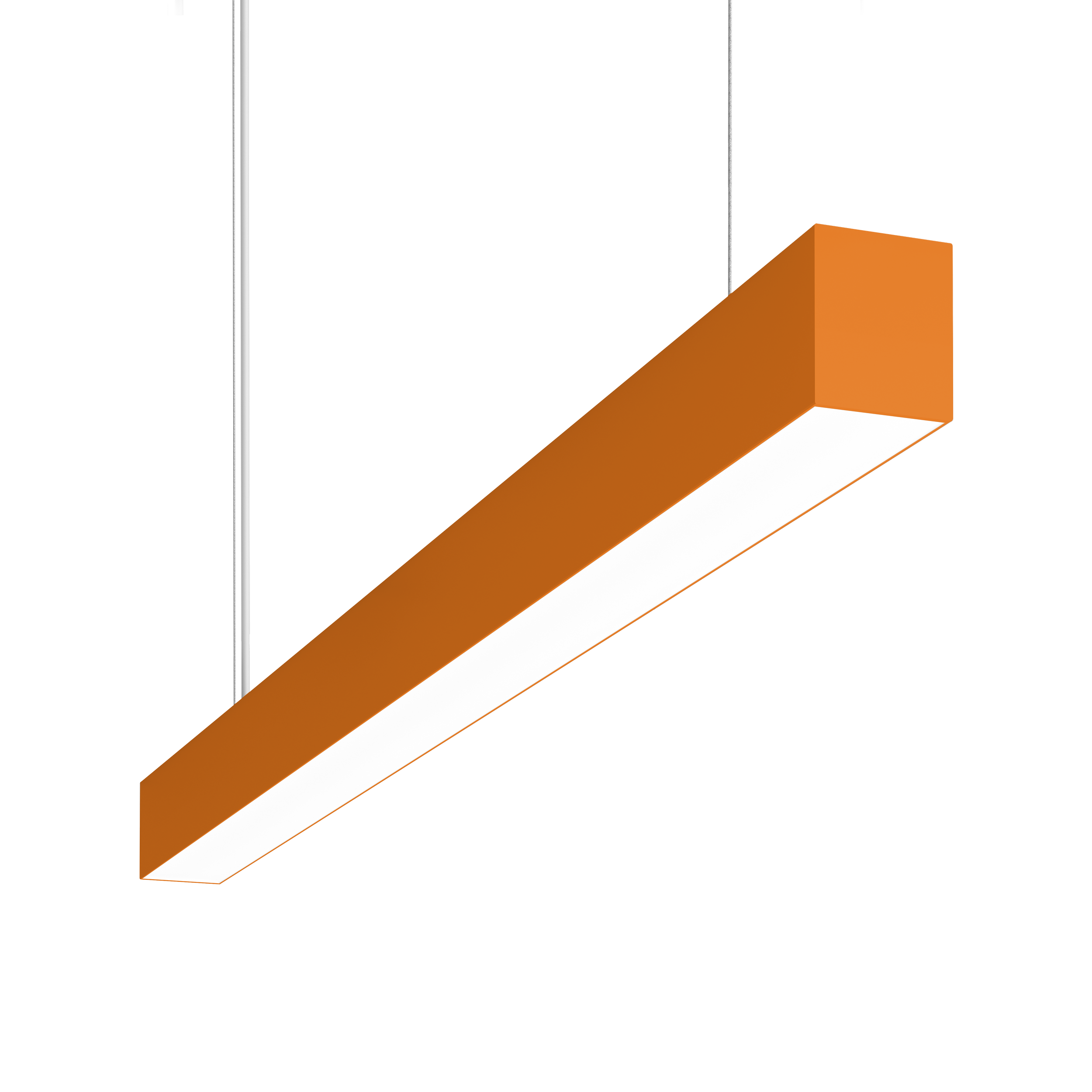

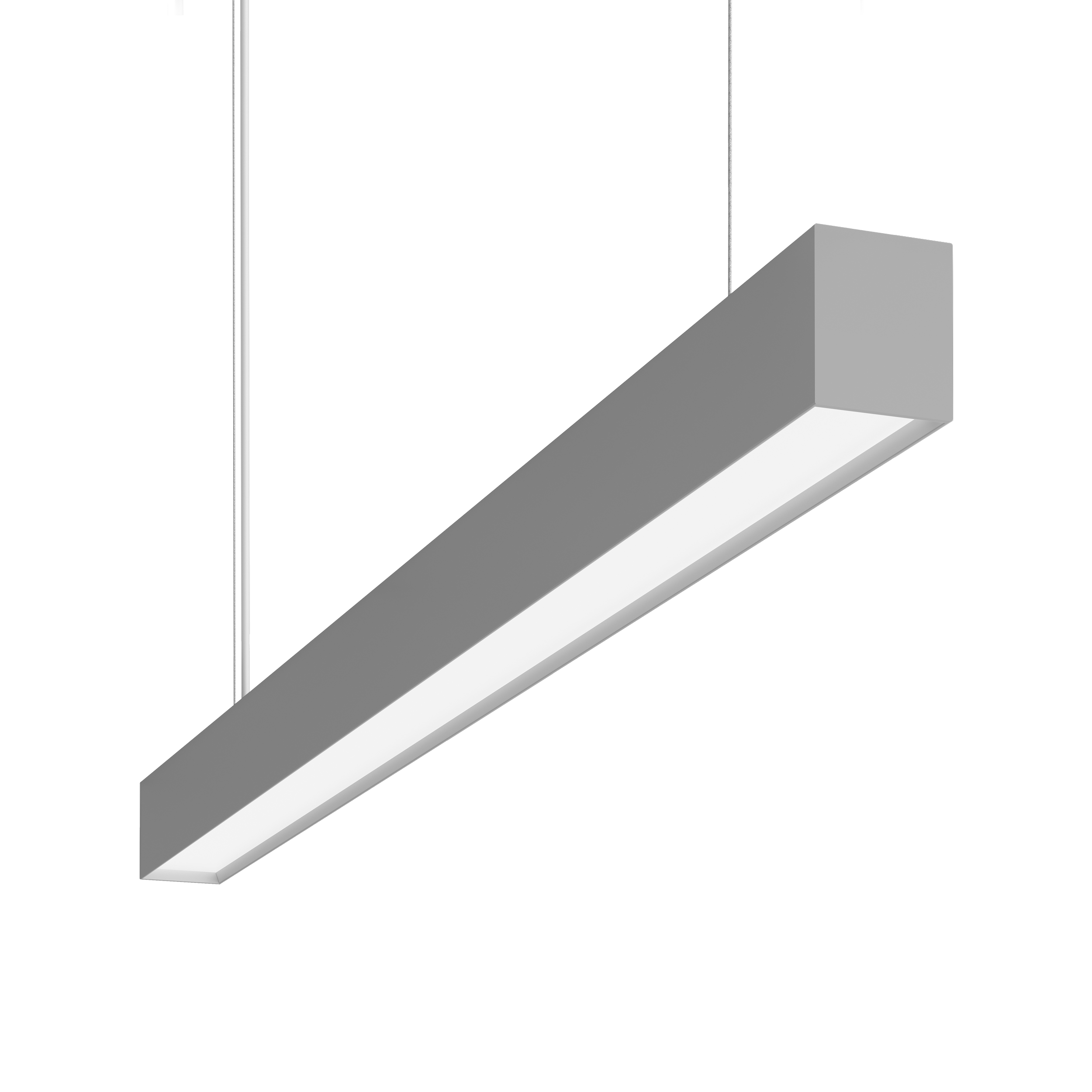

GR22D / GR22B 2" Suspended Linear

$0.00

Ultra Compact Suspended Integral Driver Direct (GR22D) or Bidirectional (GR22B) Up/Down Distribution. Nominal 2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens and Baffle options. Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integral driver for ease of installation.

  • 2”x 2” nominal profile

  • 2’, 4’, 6’ and 8’ Individual and Continuous Row Mounting

  • GR22D Direct light distribution up to 1000 lm/ft, 120 lm/W

  • GR22B Bidirectional light distribution up to 1000 lm/ft, 120 lm/W

  • Flush Lens, Regress Lens, Louver/Baffle Optics

  • INTEGRAL 120/277v Universal Driver, 0-10v Dimming to 1%

  • Aluminum/Steel Construction, Powder Coat Finish

  • White, Silver and Black Standard Finishes

Check out the GR Series Overview

Finish:
Optics:
Quantity:
Add To Cart

Ultra Compact Suspended Integral Driver Direct (GR22D) or Bidirectional (GR22B) Up/Down Distribution. Nominal 2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens and Baffle options. Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integral driver for ease of installation.

  • 2”x 2” nominal profile

  • 2’, 4’, 6’ and 8’ Individual and Continuous Row Mounting

  • GR22D Direct light distribution up to 1000 lm/ft, 120 lm/W

  • GR22B Bidirectional light distribution up to 1000 lm/ft, 120 lm/W

  • Flush Lens, Regress Lens, Louver/Baffle Optics

  • INTEGRAL 120/277v Universal Driver, 0-10v Dimming to 1%

  • Aluminum/Steel Construction, Powder Coat Finish

  • White, Silver and Black Standard Finishes

Check out the GR Series Overview

Ultra Compact Suspended Integral Driver Direct (GR22D) or Bidirectional (GR22B) Up/Down Distribution. Nominal 2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens and Baffle options. Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integral driver for ease of installation.

  • 2”x 2” nominal profile

  • 2’, 4’, 6’ and 8’ Individual and Continuous Row Mounting

  • GR22D Direct light distribution up to 1000 lm/ft, 120 lm/W

  • GR22B Bidirectional light distribution up to 1000 lm/ft, 120 lm/W

  • Flush Lens, Regress Lens, Louver/Baffle Optics

  • INTEGRAL 120/277v Universal Driver, 0-10v Dimming to 1%

  • Aluminum/Steel Construction, Powder Coat Finish

  • White, Silver and Black Standard Finishes

Check out the GR Series Overview
