Slim profile GR3S Surface Mount LED Luminaire adapts seamlessly to standard T-Grid ceiling systems. Nominal 3” aperture and Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integrated remote driver mounted above grid. INTEGRAL DRIVER and REMOTE Options for controlling up to 4 fixtures with one driver box to minimize installation labor.
1.5” x 3.3” nominal profile
2’, 4’, 6’ and 8’ Individual and Continuous Row Mounting
Direct light distribution up to 1000 lm/ft, 120 lm/W
Flush Lens, Regress Lens, or Louver/Baffle Optics

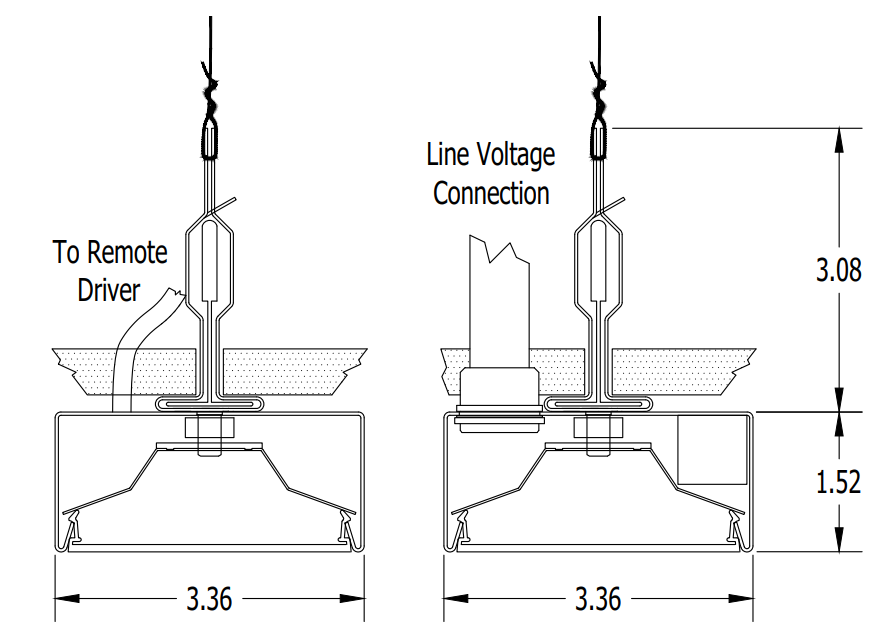

INTEGRAL or Remote 120/277v Universal Driver Options, 0-10v Dimming to 1%
Aluminum/Steel Construction, Powder Coat Finish

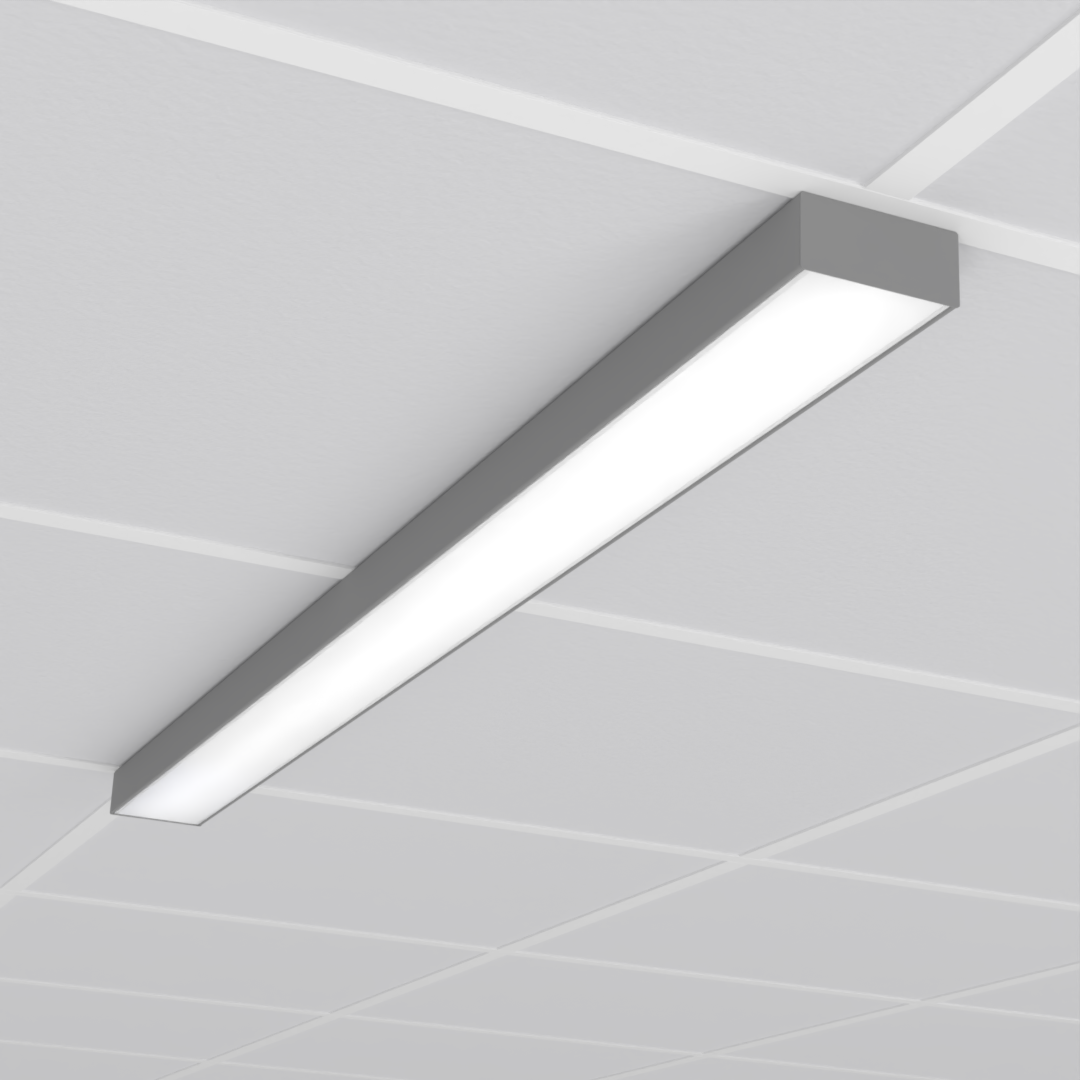

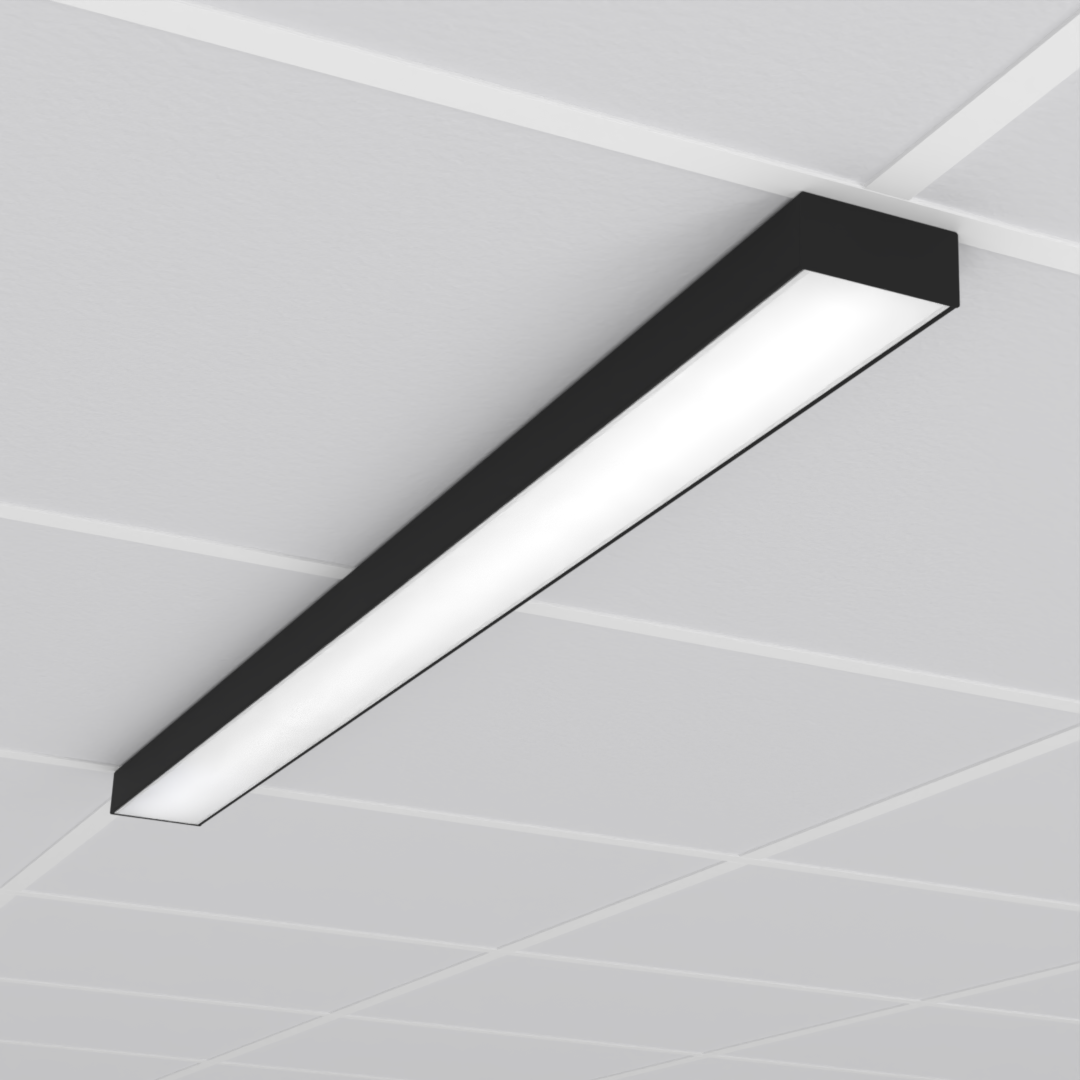

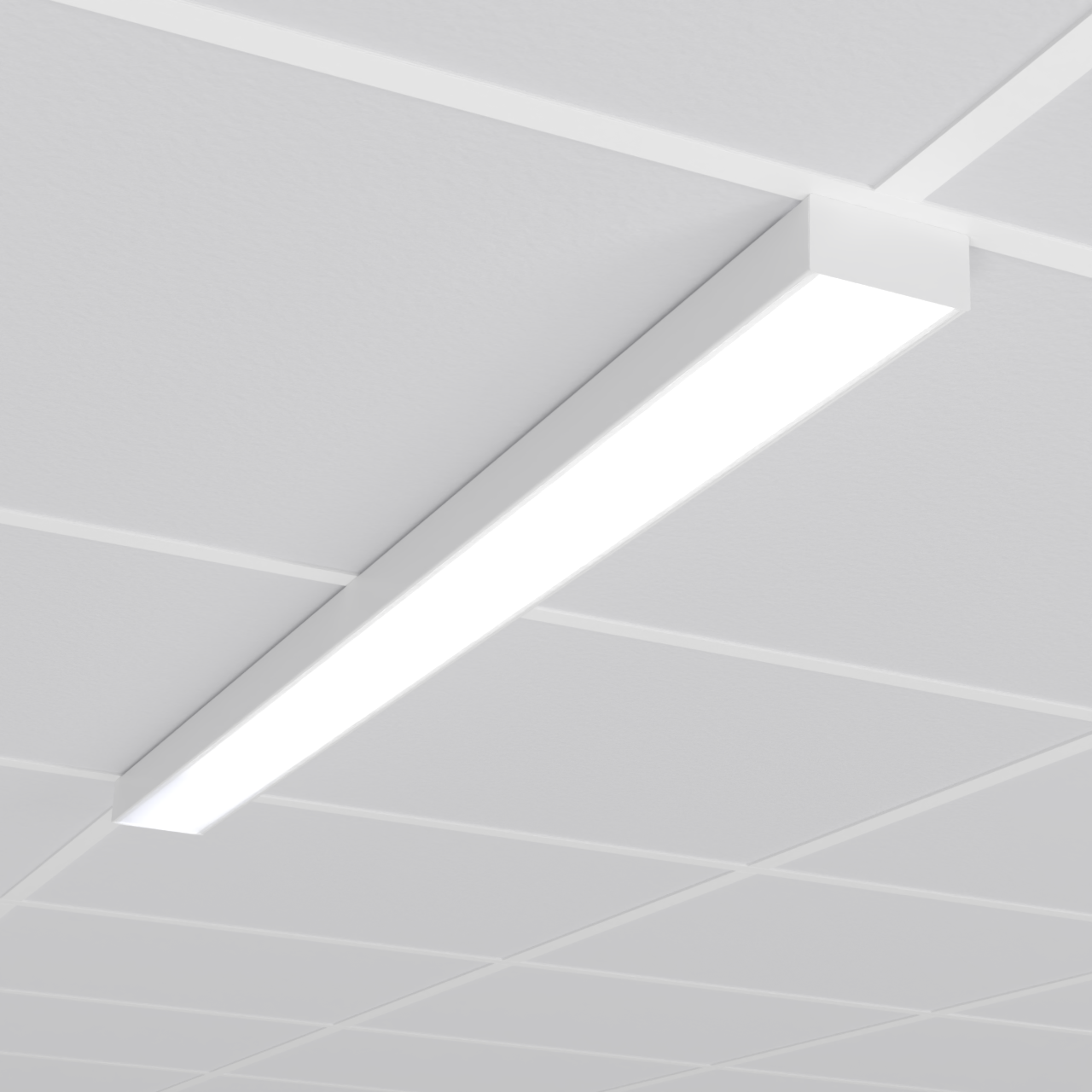

White, Silver and Black Standard Finishes
Slim profile GR3S Surface Mount LED Luminaire adapts seamlessly to standard T-Grid ceiling systems. Nominal 3” aperture and Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integrated remote driver mounted above grid. INTEGRAL DRIVER and REMOTE Options for controlling up to 4 fixtures with one driver box to minimize installation labor.
1.5” x 3.3” nominal profile
2’, 4’, 6’ and 8’ Individual and Continuous Row Mounting
Direct light distribution up to 1000 lm/ft, 120 lm/W
Flush Lens, Regress Lens, or Louver/Baffle Optics
INTEGRAL or Remote 120/277v Universal Driver Options, 0-10v Dimming to 1%
Aluminum/Steel Construction, Powder Coat Finish
White, Silver and Black Standard Finishes
GR3S IES Files
